XC3S400-TB
Spartan-3 XC3S400 TinyBoard
Category: Development Board, Xilinx FPGA, Xilinx
Spartan-3, Xilinx XC3S400, Spartan-3 Board
Keywords: FPGA, Field Programmable Gate Array, FPGA Development Board, FPGA Prototype Board,
Xilinx XC3S400
Spartan-3 XC3S400 TinyBoard
Spartan-3 XC3S400
Development Board with XC3S400-4PQG208C and Platform Flash / Configuration Flash,
Spartan-3 Board
Board details:
Suitable for high speed design, very short trace lengths!

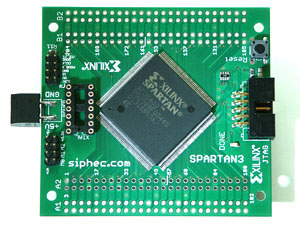

Top side:
- Xilinx FPGA XC3S400PQ208, XC3S400-4PQG208C
- JTAG header, mode pin header, config header
- crystal sockel
- reset push button, done led
- 3.5 to 5.5 Volt input connector
Bottom side:
- 3.3 Volt regulator for configuration flash and external use
- 2.5 Volt regulator for auxiliary
- 1.2 Volt regulator for core voltage
- a couple of bypass capacitators
- platform flash / configuration flash XCF02S
- all pins are available on headers (2.54mm-/0.1"
pitch)
- all pins can be used,
max. 144 User I/Os,
max. 62 differential pairs, 8 GCLKs, 22 VREFs
- available with and without soldered 2.54mm pin headers
- different crystal oscillators possible
Dimensions:
Enhancement:
For configuration see
Xilinx
Configuration-HOWTO.
